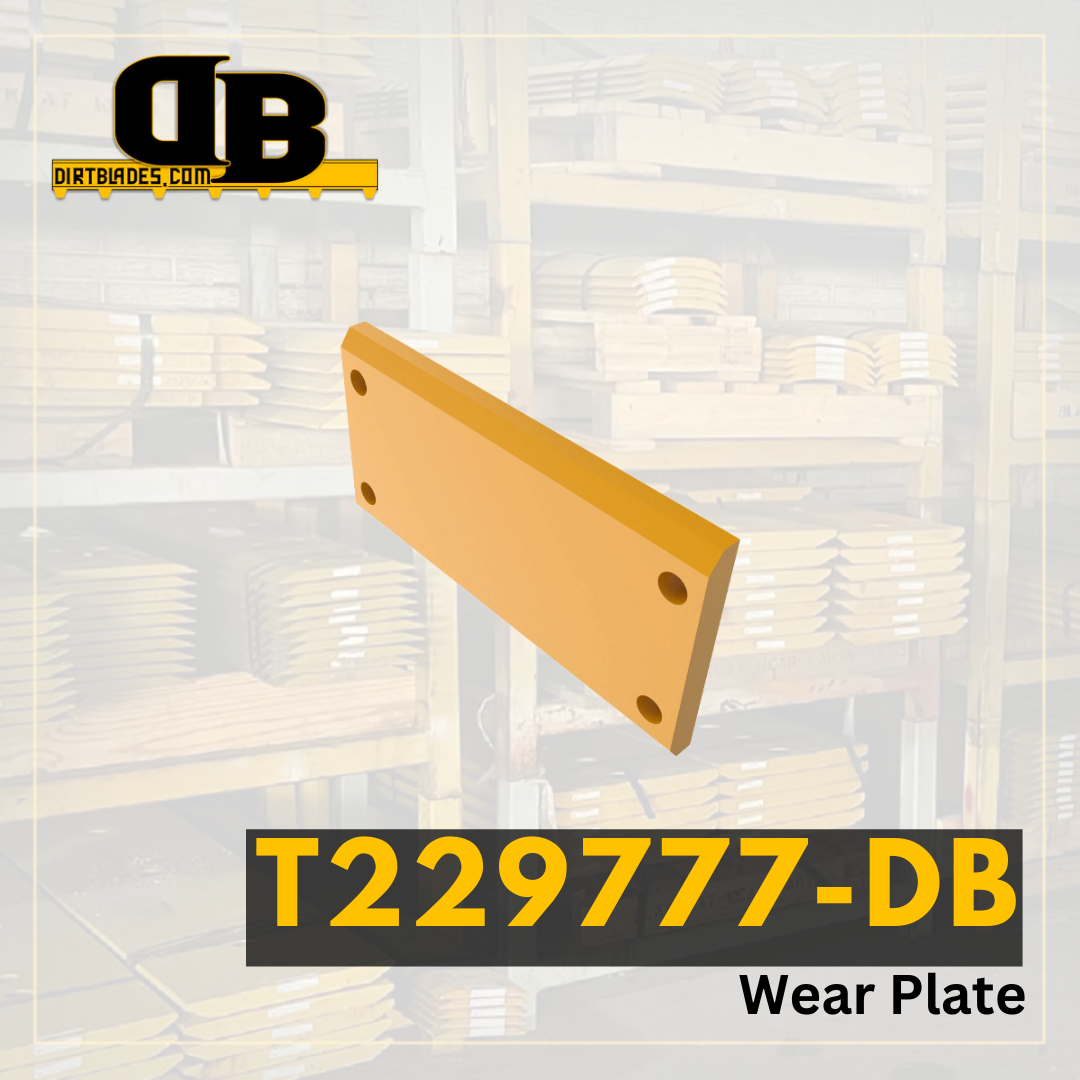

Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.
| Model Number | 624 |
|---|---|
| Series Number | J |
| Configuration | Waste Handling |
| Serial Number | 5.0/6.0/7.0YD BUCKET |
| Blade Position | Heavy Duty Wear Plate |
| Blade Thickness | 1.375 |
| Blade Width | 10 |
| Blade Length | 19.685 |
| Hole Quantity | 4 |
| Bolt Diameter | 0.625 |
| First Hole Distance From End in Inches | 1.181 |
| Second Hole Distance From First Hole in Inches | 17.323 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 2 |
| Bolt Quantity for Second Row of Holes | 2 |
| Bolt Length for Second Row of Holes | 2 |
| Second Set of Holes First Hole Distance From End | 1.181 |
| Second Set of Holes Second Hole Distance From First Hole | 17.323 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
