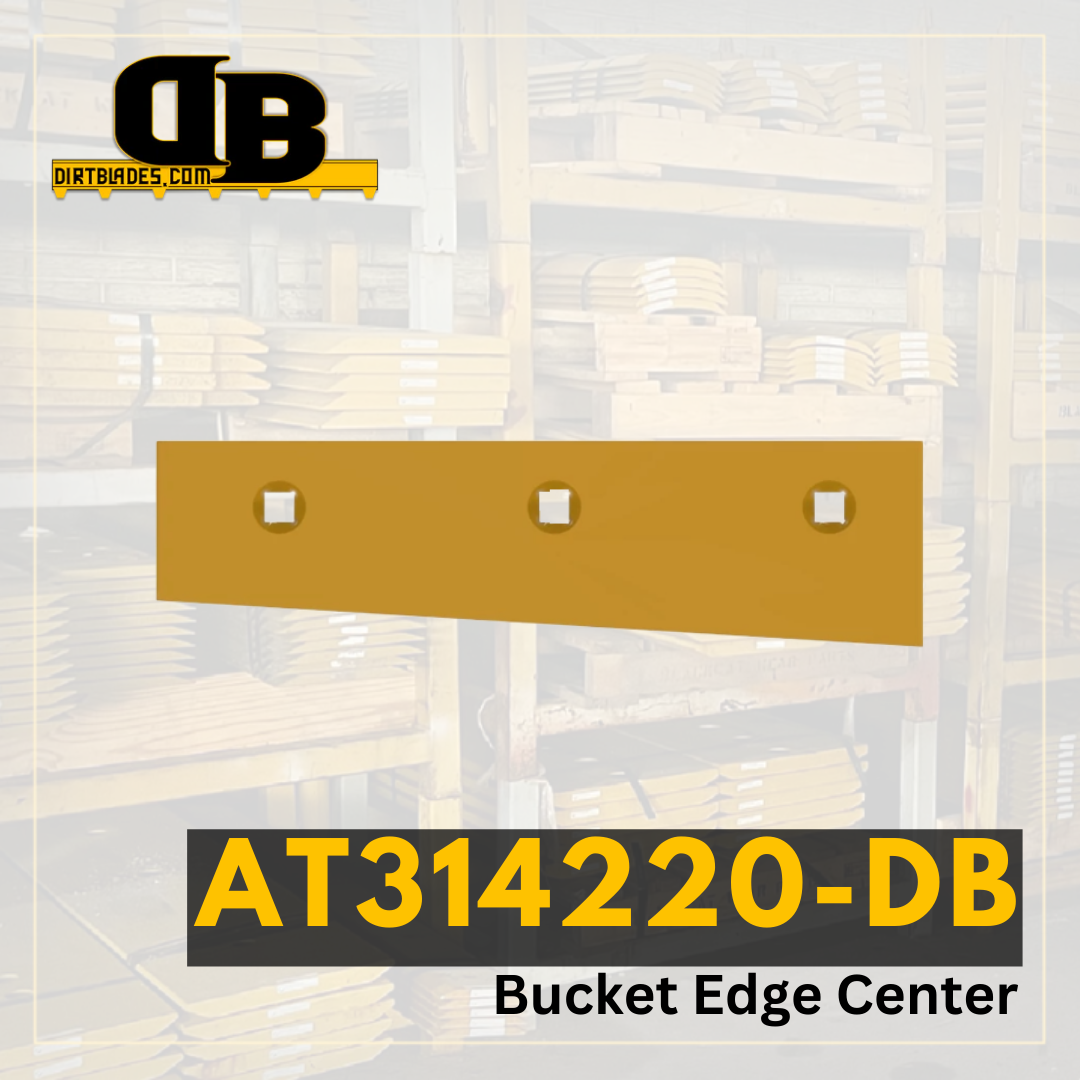

Bolt-on cutting edges have moderate impact resistance to allow them to perform across a variety of applications boosting your machines versatility. They are designed to reduce the time required to replace your cutting edges, increase bucket capacity, and reduce downtime by maintaining a long wear.
| Model Number | 244 |
|---|---|
| Series Number | J |
| Configuration | General Purpose |
| Serial Number | 1.1M BUCKET |
| Blade Position | Center |
| Blade Thickness | 0.75 |
| Blade Width | 6 |
| Blade Length | 28.13 |
| Hole Quantity | 3 |
| Bolt Diameter | 0.625 |
| First Hole Distance From End in Inches | 5.394 |
| Second Hole Distance From First Hole in Inches | 9.252 |
| Third Hole Distance From Second Hole in Inches | 9.252 |
| Bolt Quantity for First Row of Holes | 3 |
| Bolt Length for First Row of Holes | 2.25 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
