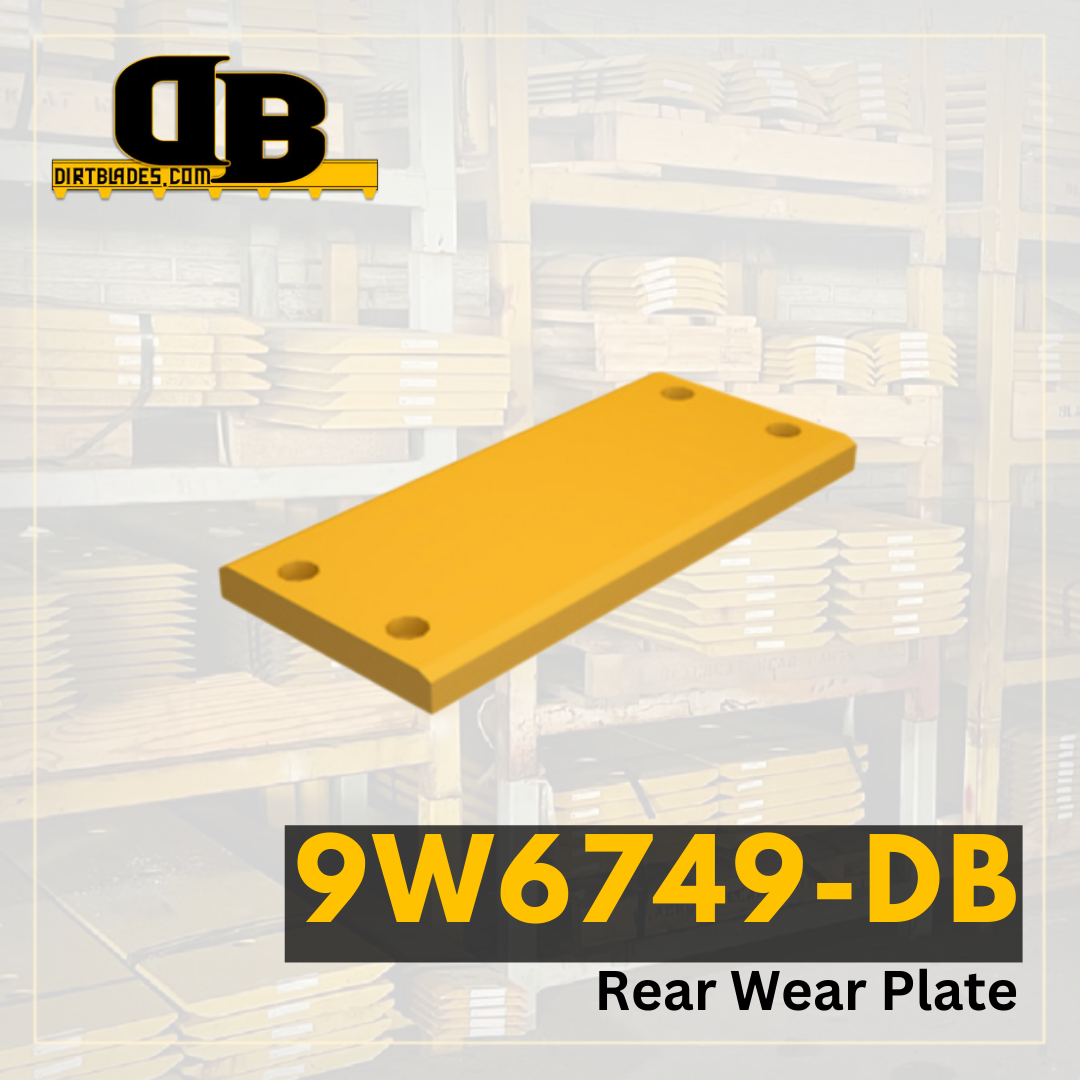

9W6749-DB | Rear Wear Plate
Regular price
$346.07
Pickup available at Pine Bluff Warehouse
Usually ready in 24 hours
Wear Plates are designed to extend the life of your loader buckets. These OEM quality parts protect buckets from damage when operating in moderate- to high-abrasion environments.
| Model Number | 962 |
|---|---|
| Series | G H |
| Configuration | Corner Guard System, Material Handling |
| Serial Number | 2748377 3199411 3410071 2748377 3199411 3410071 |
| Blade Position | Rear Wear Plate |
| Blade Thickness | 1.375 |
| Blade Width | 10 |
| Blade Length | 22.25 |
| Hole Quantity | 4 |
| Bolt Diameter | 0.75 |
| First Hole Distance From End in Inches | 1.375 |
| Second Hole Distance From First Hole in Inches | 19.5 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 2.5 |
| Bolt Quantity for Second Row of Holes | 2 |
| Bolt Length for Second Row of Holes | 2.5 |
| Second Set of Holes First Hole Distance From End | 1.375 |
| Second Set of Holes Second Hole Distance From First Hole | 19.5 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
