Router bits help prevent wear and costly damage to the scraper bowl. Level cut router bits are extended below the bolt holes and are used for clean-up work, reducing windows by keeping more of the material in front of the cutting edges. Heavy-duty router bits are similar to standard router bits but offer more wear material. Standard router bits are recommended for most applications.
| Model Number | 613 |
|---|---|
| Series | C |
| Configuration | |
| Serial Number | 93X1-UP |

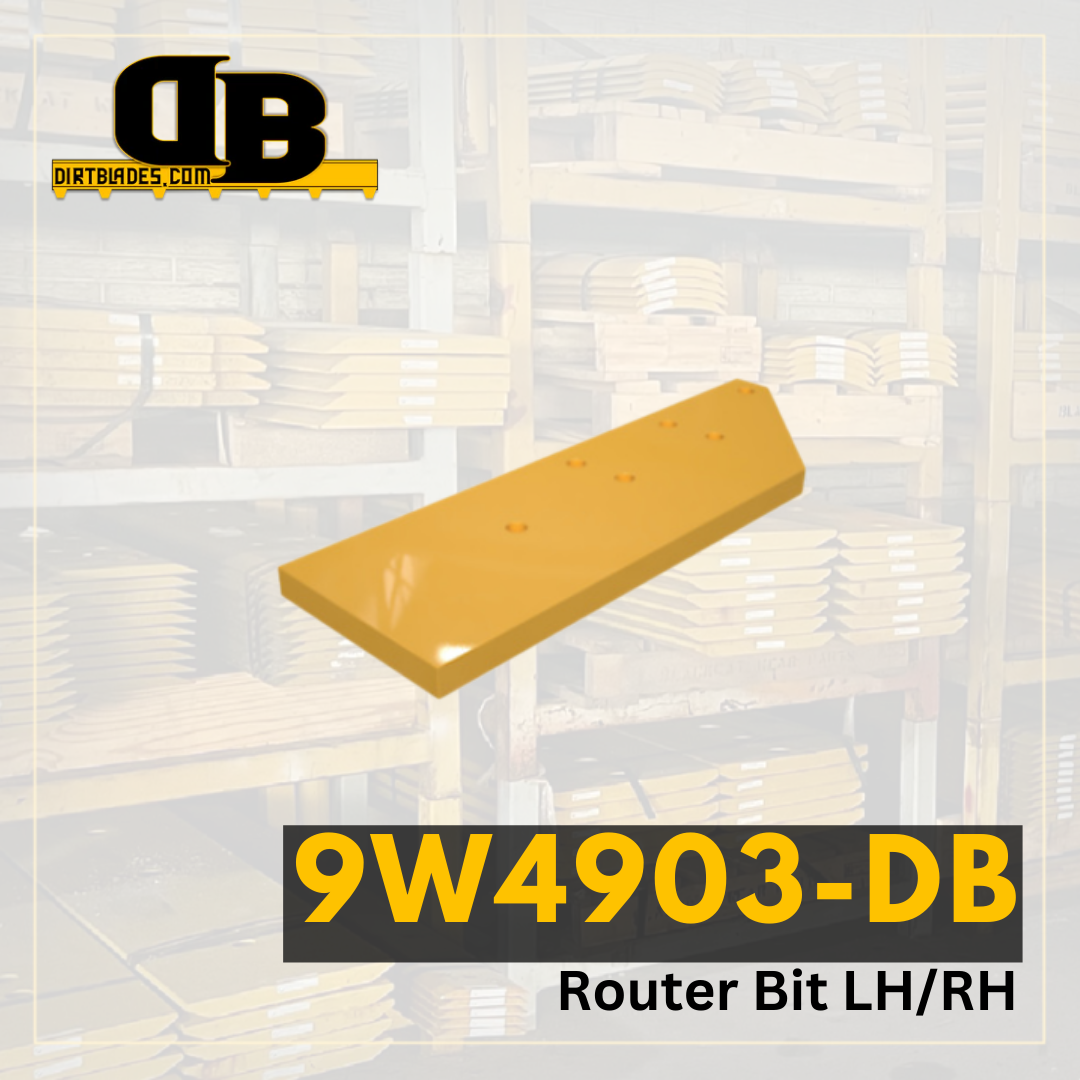

| Blade Position | RH/LH Level Cut Router Bit |
| Blade Thickness | 1 |
| Blade Width | 7 |
| Blade Length | 22.5 |
| Hole Quantity | 6 |
| Bolt Diameter | 0.688 |
| First Hole Distance From End in Inches | 11.375 |
| Second Hole Distance From First Hole in Inches | 5.125 |
| Third Hole Distance From Second Hole in Inches | 5.125 |
| Bolt Quantity for First Row of Holes | 3 |
| Bolt Length for First Row of Holes | 2.25 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 6.563 |
| Second Set of Holes Second Hole Distance From First Hole | 5.125 |
| Second Set of Holes Third Hole Distance From Second Hole | 5.125 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
