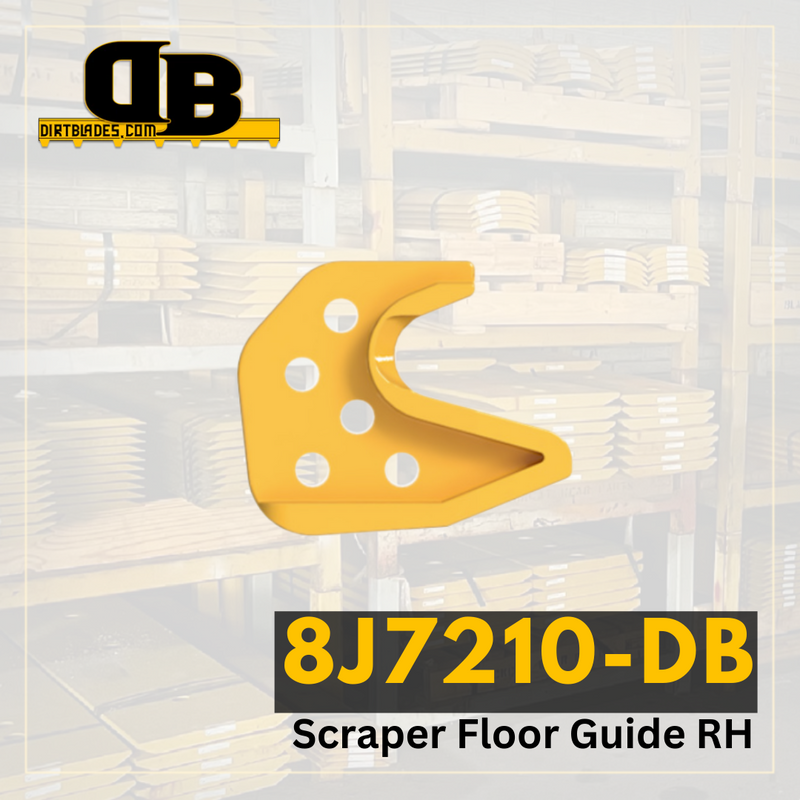

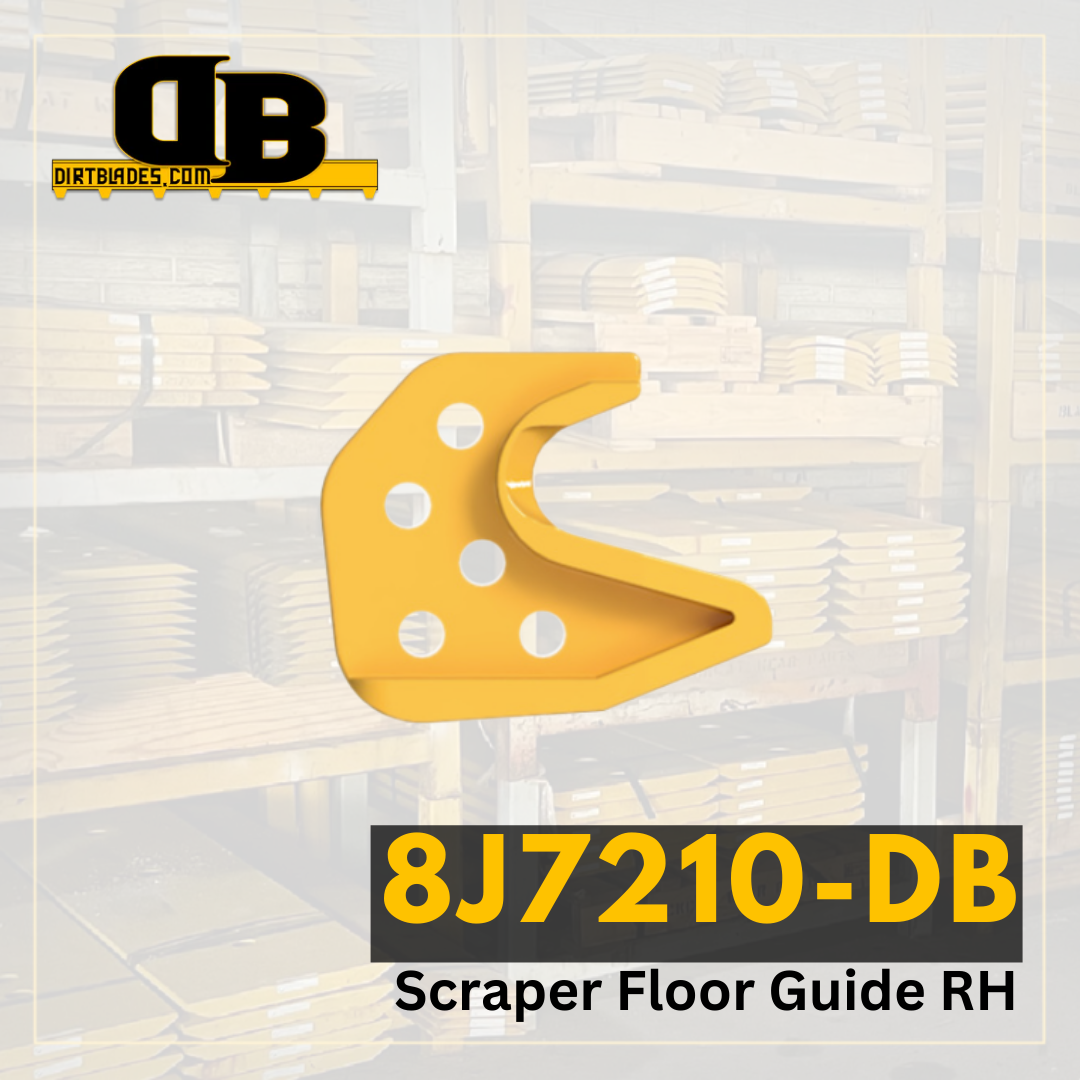

8J7210-DB | Scraper Floor Guide RH
Regular price
$141.36
Couldn't load pickup availability
Guides are used to position and guide components in an assembly.Track guiding guards assist in guiding and protecting the link assembly and rollers from debris and material.
| Model Number | 615 |
|---|---|
| Series | |
| Configuration | |
| Serial Number | 47Z1340-UP 2XG-UP |
| Blade Position | RH Scraper Floor Guide |
| Blade Thickness | 0 |
| Blade Width | 0 |
| Blade Length | 0 |
| Hole Quantity | 5 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 0 |
| Second Hole Distance From First Hole in Inches | 0 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 5 |
| Bolt Length for First Row of Holes | 2 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
