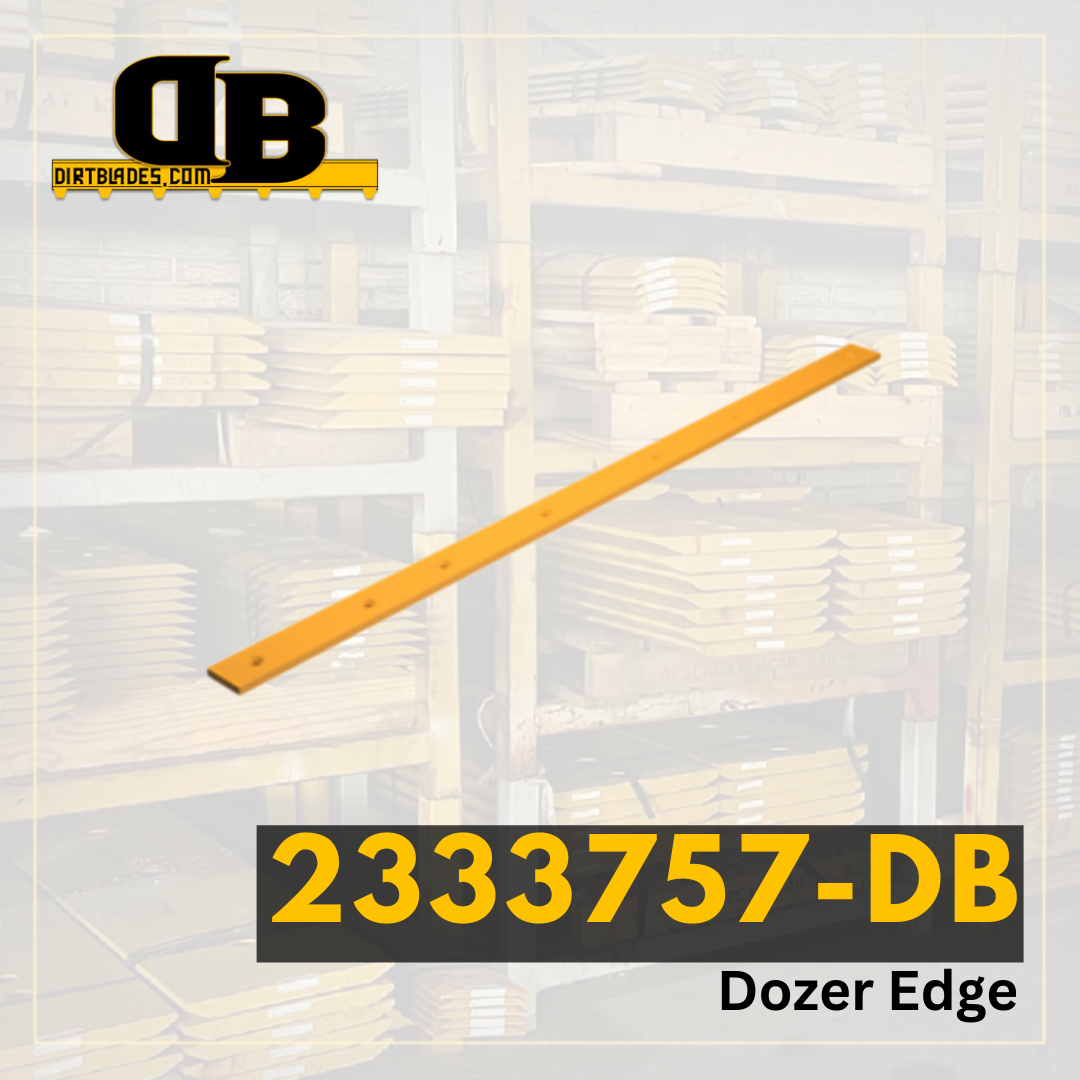

Dozer cutting edges offer a balanced system for efficient material movement. They provide both superior breakage resistance and maximum wear protection, making them a reliable solution for moving materials.
| Model Number | 416 420 424 426 428 430 432 436 438 442 |
|---|---|
| Series Number | |
| Configuration | 89" Multi-Puprose Bucket |
| Serial Number | 9R5427 9R3732 1083036 9R3733 9R4667 9R6088 |
| Blade Position | Multi purpose dozer edge |
| Blade Thickness | 0.75 |
| Blade Width | 4 |
| Blade Length | 89.125 |
| Hole Quantity | 8 |
| Bolt Diameter | 0.625 |
| First Hole Distance From End in Inches | 3.25 |
| Second Hole Distance From First Hole in Inches | 11.813 |
| Third Hole Distance From Second Hole in Inches | 8.813 |
| Bolt Quantity for First Row of Holes | 0 |
| Bolt Length for First Row of Holes | 0 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
