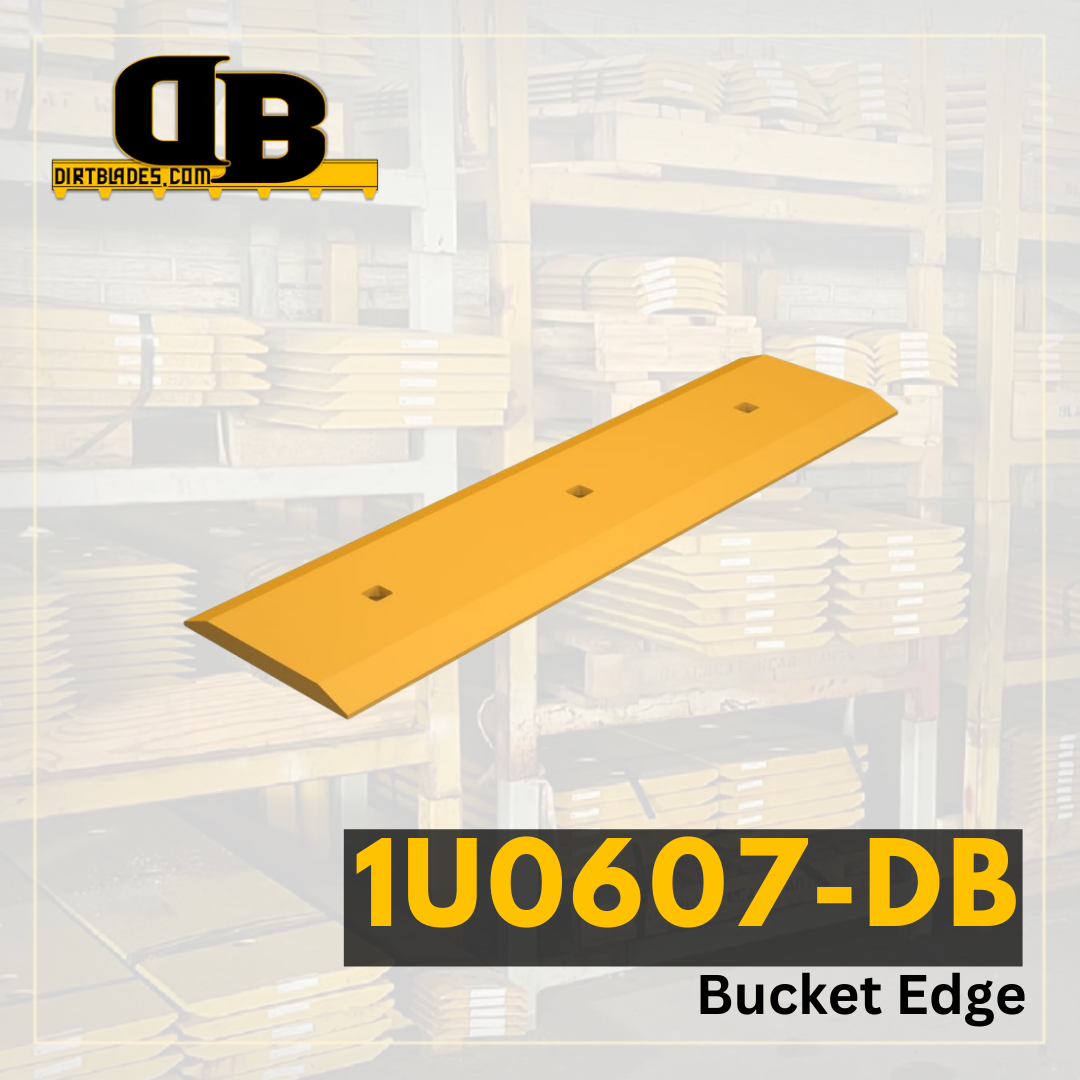

1U0607-DB | Bucket Edge
Regular price
$229.54
Pickup available at Pine Bluff Warehouse
Usually ready in 24 hours
Bolt-on cutting edges have moderate impact resistance to allow them to perform across a variety of applications boosting your machines versatility. They are designed to reduce the time required to replace your cutting edges, increase bucket capacity, and reduce downtime by maintaining a long wear.
| Model Number | 920 |
|---|---|
| Series | |
| Configuration | Corner Guard System |
| Serial Number | 5V4662 5V4660 |
| Blade Position | Center |
| Blade Thickness | 1 |
| Blade Width | 11 |
| Blade Length | 41.102 |
| Hole Quantity | 3 |
| Bolt Diameter | 1 |
| First Hole Distance From End in Inches | 6.772 |
| Second Hole Distance From First Hole in Inches | 13.78 |
| Third Hole Distance From Second Hole in Inches | 13.78 |
| Bolt Quantity for First Row of Holes | 3 |
| Bolt Length for First Row of Holes | 2.75 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
| Teeth Length | |
| Teeth Width | |
| Teeth Thickness | |
