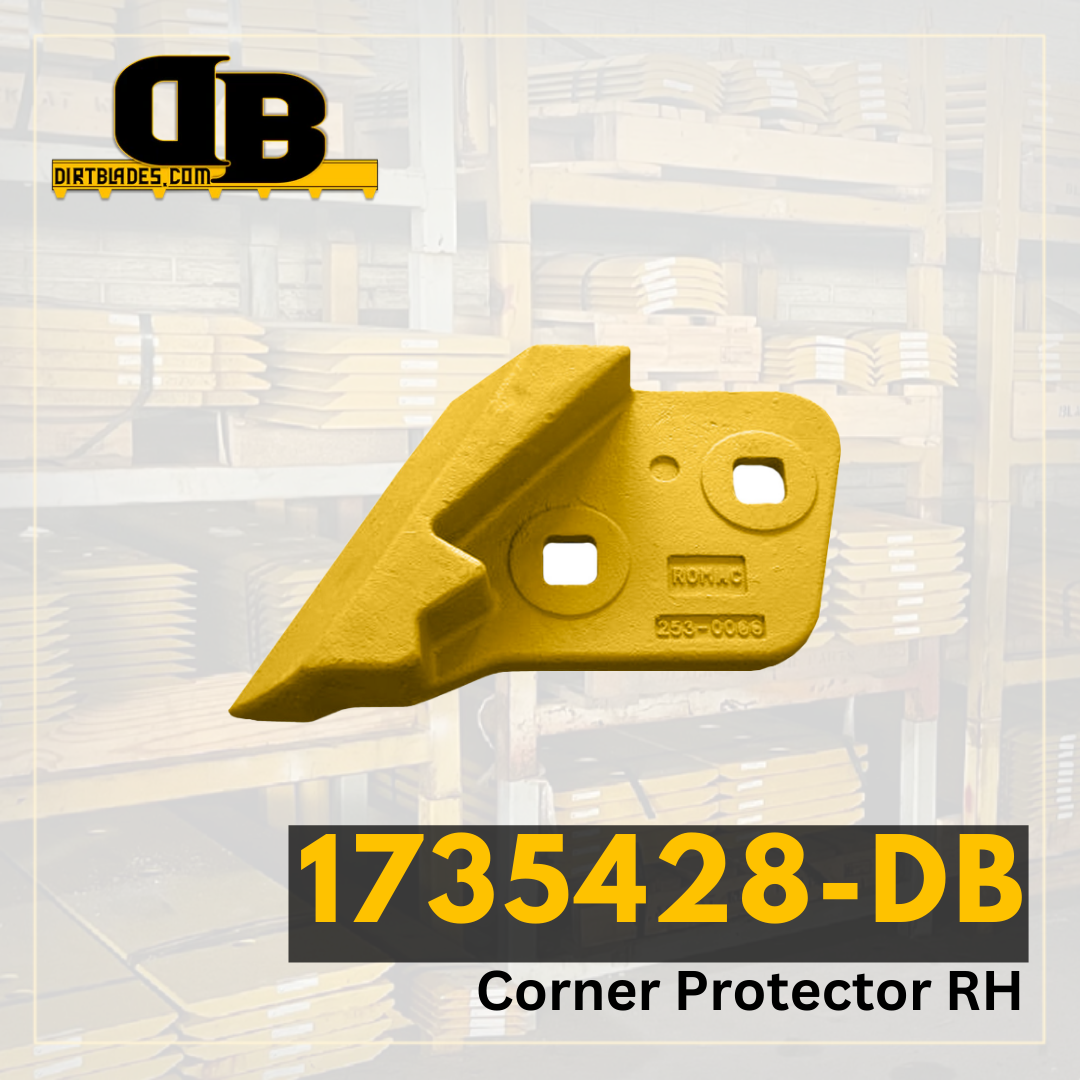

1735428-DB | Corner Protector RH
Regular price
$161.94
Couldn't load pickup availability
OEM quality corners offer high manufacturing precision and protect bucket sides with a wear-resistant surface. The Ground Engaging Tools (GET) are designed for to deliver consistent, superior protection. Corners are replaceable wear surfaces that protect the bucket's structural integrity, while durable Sidecutters maintain hardness for long wear life.
| Model Number | 962 |
|---|---|
| Series Number | G |
| Configuration | Corner Guard System |
| Serial Number | 2484153 |
| Blade Position | Old Style 2 Hole Corner Protector RH |
| Blade Thickness | 1.25 |
| Blade Width | 9.25 |
| Blade Length | 14.5 |
| Hole Quantity | 2 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 3.875 |
| Second Hole Distance From First Hole in Inches | 0 |
| Third Hole Distance From Second Hole in Inches | 0 |
| Bolt Quantity for First Row of Holes | 2 |
| Bolt Length for First Row of Holes | 4.125 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 9.313 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
