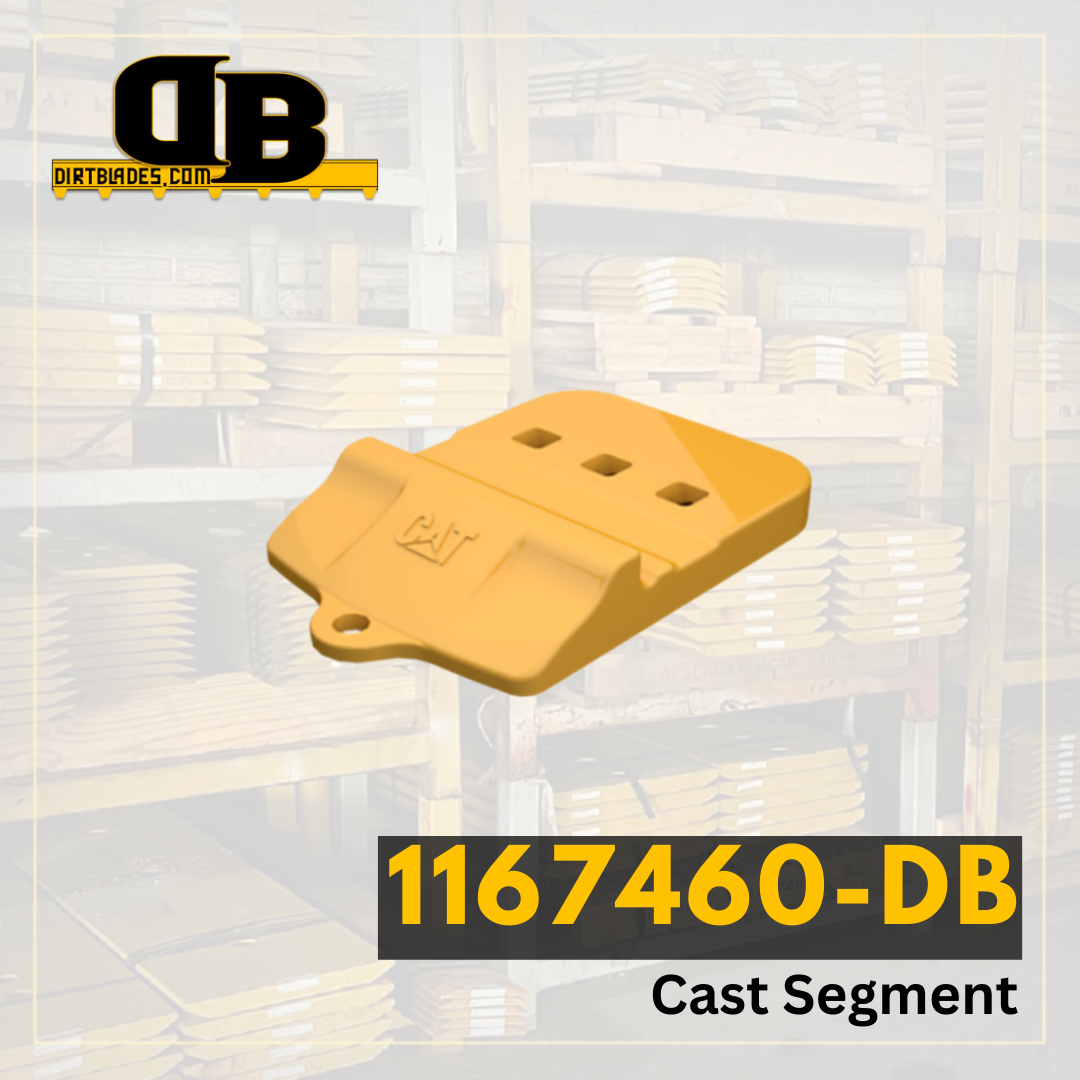

OEM quality Cast Segments are specially designed to protect your bucket lip. The cast segments provide additional protection to the bucket base edge, covering more area between adapters and enhancing load-ability.
| Model Number | 844 |
|---|---|
| Series Number | J K L |
| Configuration | Spade Nose Rock |
| Serial Number | 137.5" TEETH AND SEGMENTS |
| Blade Position | HA Segment Cast |
| Blade Thickness | 2 |
| Blade Width | 18.827 |
| Blade Length | 12.283 |
| Hole Quantity | 3 |
| Bolt Diameter | 1.25 |
| First Hole Distance From End in Inches | 2.795 |
| Second Hole Distance From First Hole in Inches | 3.346 |
| Third Hole Distance From Second Hole in Inches | 3.346 |
| Bolt Quantity for First Row of Holes | 3 |
| Bolt Length for First Row of Holes | 4 |
| Bolt Quantity for Second Row of Holes | 0 |
| Bolt Length for Second Row of Holes | 0 |
| Second Set of Holes First Hole Distance From End | 0 |
| Second Set of Holes Second Hole Distance From First Hole | 0 |
| Second Set of Holes Third Hole Distance From Second Hole | 0 |
